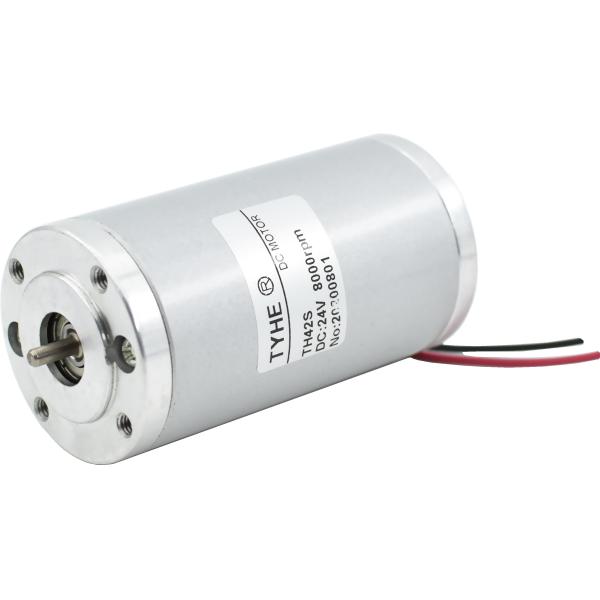

High Power Electric Brushed Dc Motor 42mm 40v 50w 3500Rpm

Brand Name : TYHE

Model Number : TH42S

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : 42mm*79mm

Voltage : 12V 24V or customize

Speed : 3500 rpm or Customized

Torque : 40mN.m

Commutation : brushed

Type : Brushed dc motor, mini dc motor

Keywords : Factory Goods D42mm 12v 24v 25w 50w 3500 Rpm PMDC Brushed Dc Motor With Brake

Contact Now

Products Description

Manufacturer 42mm 12v 40v 24 v 12 voltio 50w 50 watt 60 watt 3500 rpm 7000rpm high power electric brushed dc motor for car brake

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
TH42S 12 4000 300 3200 1.20 26.50 8.88 61.66 79.50 7.50
TH42S 12 7500 750 6000 3.00 35.50 22.30 61.95 106.50 18.75
TH42S 24 2300 90 1840 0.36 28.10 5.41 62.66 84.30 2.25
TH42S 24 5500 260 4400 1.04 33.50 15.43 61.84 100.50 6.50

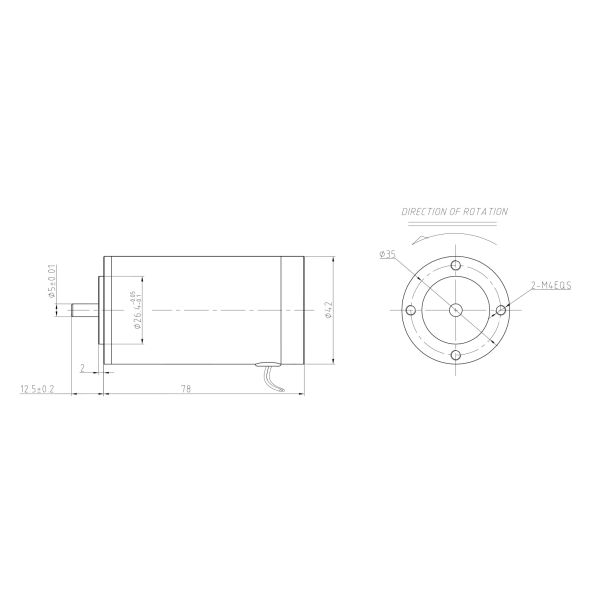

2D drawing

High Power Electric Brushed Dc Motor 42mm 40v 50w 3500Rpm


High Power Electric Brushed Dc Motor 42mm 40v 50w 3500Rpm


High Power Electric Brushed Dc Motor 42mm 40v 50w 3500Rpm

Please let us know your requirements and we will provide you with transmission solutions.

High Power Electric Brushed Dc Motor 42mm 40v 50w 3500RpmHigh Power Electric Brushed Dc Motor 42mm 40v 50w 3500RpmHigh Power Electric Brushed Dc Motor 42mm 40v 50w 3500RpmHigh Power Electric Brushed Dc Motor 42mm 40v 50w 3500RpmHigh Power Electric Brushed Dc Motor 42mm 40v 50w 3500RpmHigh Power Electric Brushed Dc Motor 42mm 40v 50w 3500Rpm
